The state of the art broadcast microphone from Neumann

  • Specially designed for radio announcers
  • All-new speech optimized condenser capsule
  • Integrated pop-screen and elastic suspension
查看完整資訊

可摺疊的內容

Description

The Perfect Gateway to Your Listeners

The BCM 104 is a dedicated broadcast microphone for radio announcers and DJs, designed to convey emotion with Neumann perfection. Its functionally optimized design features an integrated pop screen and a shock protected large diaphragm condenser capsule, specially developed for speech. Transformerless circuitry ensures a direct, noise-free sound.

You Speak – the World Listens

Broadcast is a much more immediate way to reach the listeners than studio recording. That’s why Neumann decided to develop a microphone that specifically addresses the needs and working conditions of radio DJs, announcers, newscasters, talk show hosts, and all those who guide us through the day with their stories, good vibes, and the latest information.

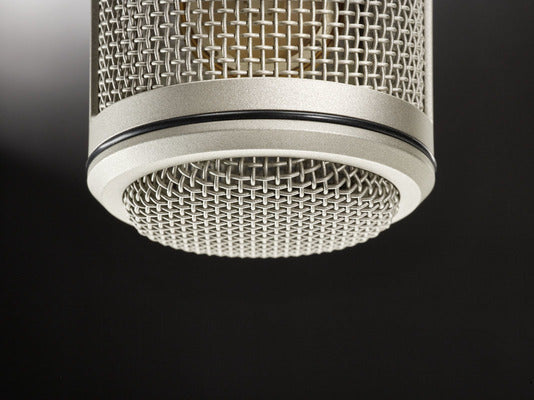

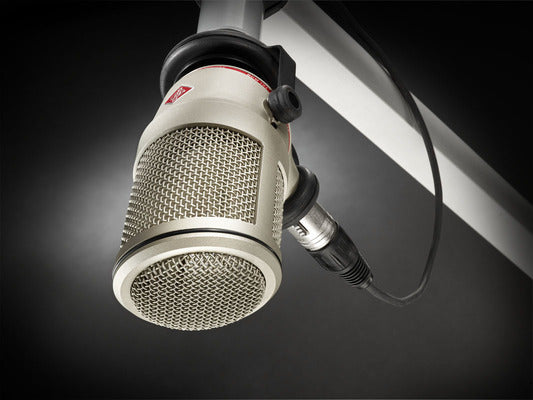

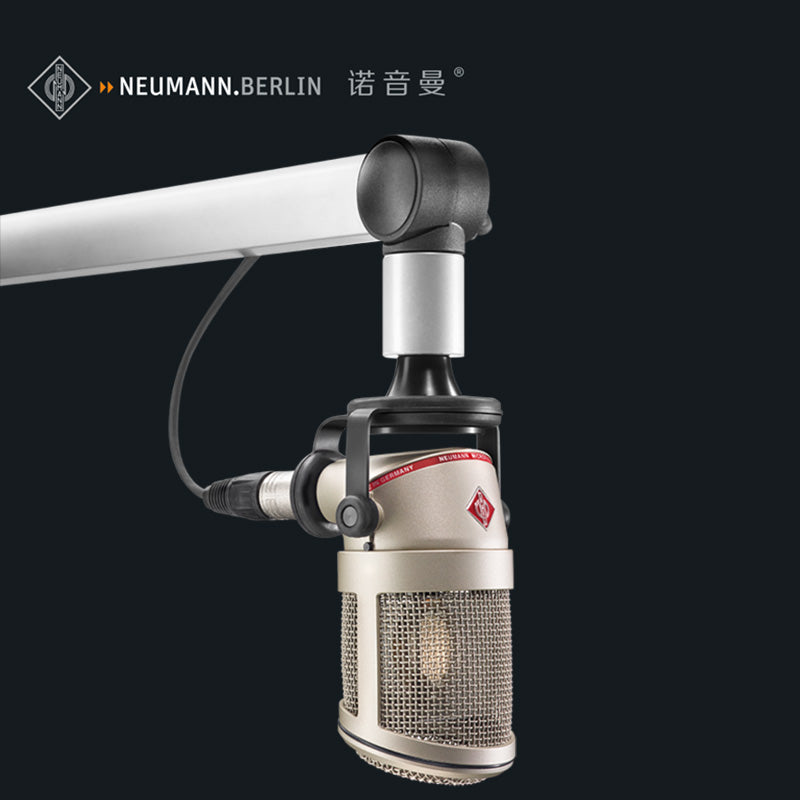

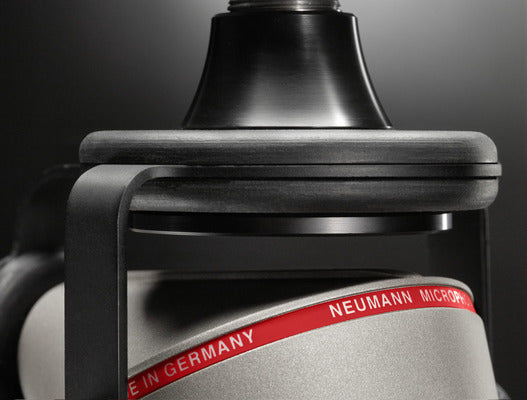

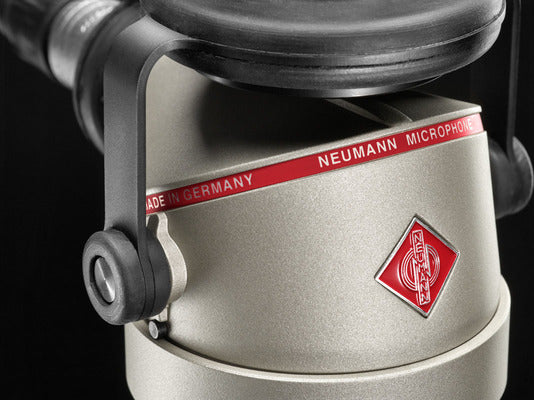

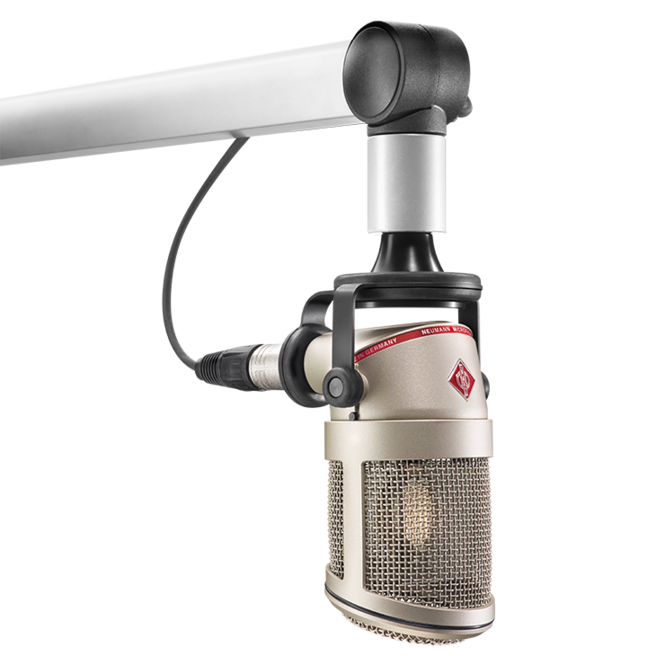

The BCM 104 is designed to convey emotion with perfection. Its characteristic shape is functionally optimized for use with industry standard microphone boom arms. Thanks to its elastic mount, the BCM 104 is well protected against structure borne noise. An integrated pop screen behind the headgrille protects the capsule from air blasts and plosives. For increased hygiene, the headgrille twists off easily for quick cleaning.

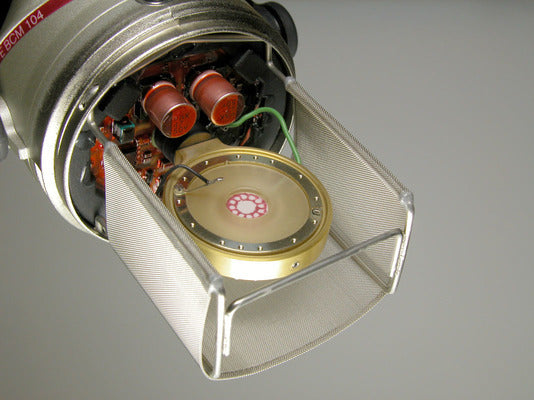

The large diaphragm condenser capsule of the BCM 104 captures each nuance of your voice without coloration or unwanted artifacts. The BCM 104’s electronic circuit has an extremely low self-noise of only 7 dB-A and can handle enormous sound pressure levels of up to 138 dB without distortion. Its balanced output operates transformerless to ensure minimal hum interference and high common mode rejection against extraneous signals e.g. from computer screens. A subsonic filter suppresses frequencies below 20 Hz. For close speech operation, an optional 100 Hz low cut is available to compensate for the proximity effect. A second switch activates a –14 dB preattenuation to reduce the BCM 104’s output level for use with equipment designed for dynamic microphones (which typically have a much lower sensitivity than condenser microphones). Both switches are hidden inside the microphone as the low cut and preattenuation options are usually selected only once, at setup.

Designed for the Human Voice

The BCM 104 has a fixed cardioid pattern with excellent rejection of rearward sound. Its frequency response is very linear with a gentle presence boost around 4 kHz and a slight treble lift above 10 kHz for enhanced speech intelligibility. Due to its outstanding transient response, the BCM 104 captures each nuance of the human voice with stunning detail. Because of its wide frequency response, the BCM 104 can be used for much more than speech applications, e.g. sung vocals and a wide variety of instruments.

  • Functionally optimized design
  • Specially designed large diaphragm condenser capsule
  • Tight cardioid pattern
  • Integrated pop screen and shock mount
  • Headgrille twists off easily for quick cleaning
  • Internal pad and low cut switches

The Neumann BCM series also includes a variant with a dynamic capsule, the BCM 705.

Data and Diagrams

Acoustical operating principle Pressure gradient transducer
Directional Pattern Cardioid
Frequency Range 20 Hz ... 20 kHz
Sensitivity at 1 kHz into 1 kohm 22 mV/Pa = –33.1 dBV ± 1 dB
Sensitivity at –14 dB attenuation 4.4 mV/Pa
Rated Impedance 50 ohms
Rated load impedance 1 kohms
Equivalent noise level, CCIR¹⁾ 18 dB
Equivalent noise level, A-weighted¹⁾ 7 dB-A
Maximum SPL for THD 0.5%²⁾ 138 dB
Maximum SPL for THD 0.5% with preattenuation²⁾ 152 dB
Signal-to-noise ratio, CCIR (re. 94 dB SPL)¹⁾ 76 dB
Signal-to-noise ratio, A-weighted (re. 94 dB SPL)¹⁾ 87 dB
Maximum output voltage 10 dBu
Supply voltage (P48, IEC 61938) 48 V ± 4 V
Current consumption (P48, IEC 61938) 3.2 mA
Matching connector XLR 3 F
Weight 500 g
Diameter 64 mm
Length 85 mm
Height 110 mm (without suspension)

1) according to IEC 60268-1; CCIR-weighting acccording to CCIR 468-3, quasi peak; A-weighting according to IEC 61672-1, RMS

2) measured as equivalent el. input signal

Diagrams

Cardioid BCM 104

Cardioid BCM 104 Cardioid BCM 104
