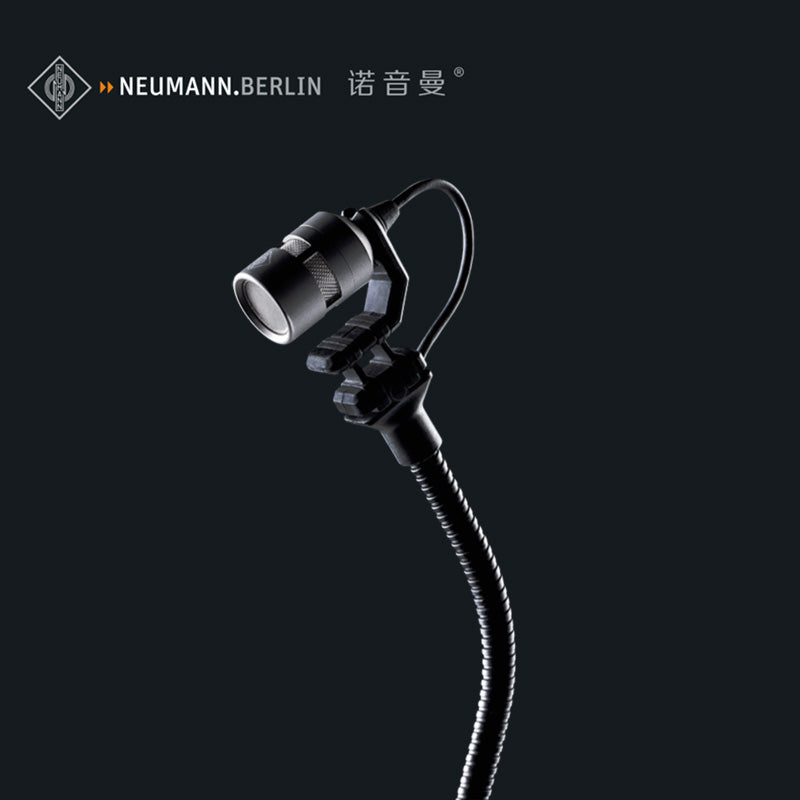

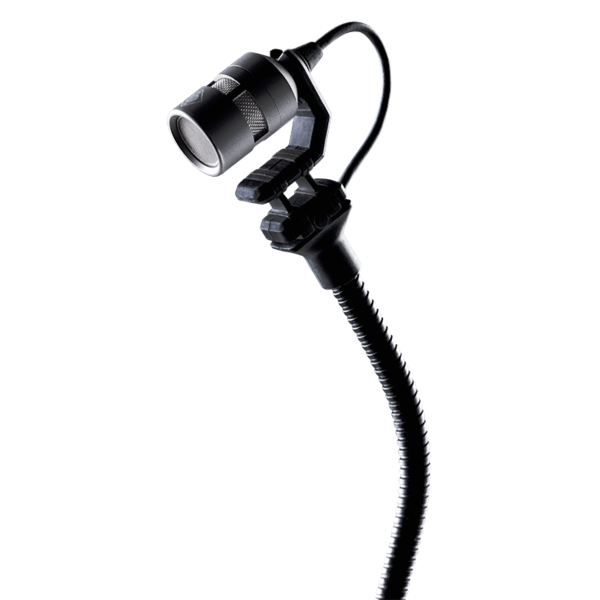

Neumann MCM 114

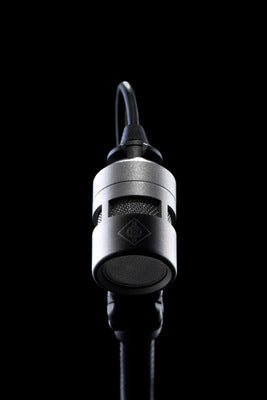

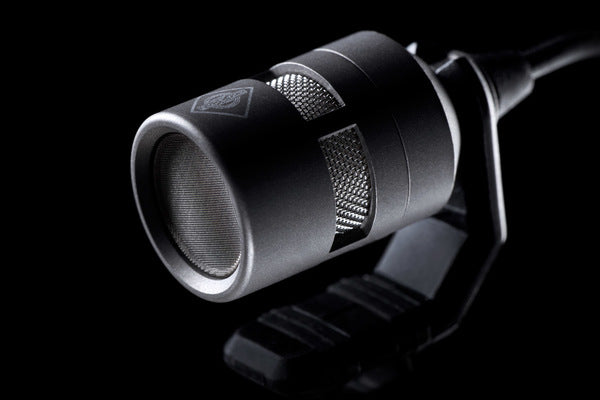

THE CAPSULE: 8 PARTS OF PERFECTION

A new level of tonal balance, more body, especially in the bass and mid-range, and transparency in the treble: The newly developed KK 14 cardioid capsule overcomes former limitations of the electret principles and catches the signature sound of a wide range of acoustic sources. To achieve this, Neumann developed a layer-based design. Each of the capsulesʼ eight key components are designed for optimal performance, manufactured independently, and assembled by hand later on. The strict quality control also guarantees an unheard level of tonal consistency. Each capsule sounds exactly the same and delivers the neutral Neumann-style sound, saving time during setup and EQ tuning especially when running multiple microphones simultaneously.

With ultra-low self-noise of 23 dBA and an extremely high maximum sound level of 153 dB SPL, the KK 14 delivers perfect results from both very quiet and very loud instruments.

The titanium housing is road tough and protects the more sensitive parts for years to come.

CONNECTIVITY

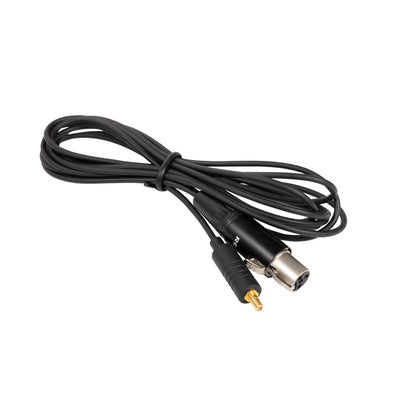

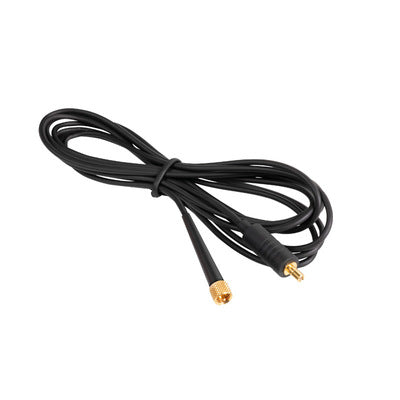

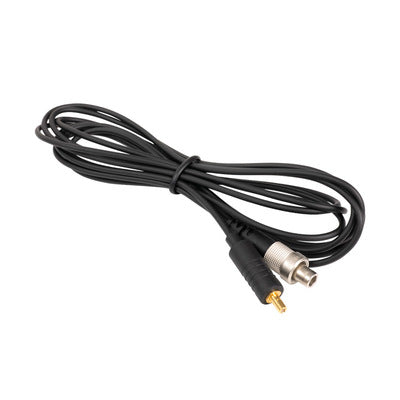

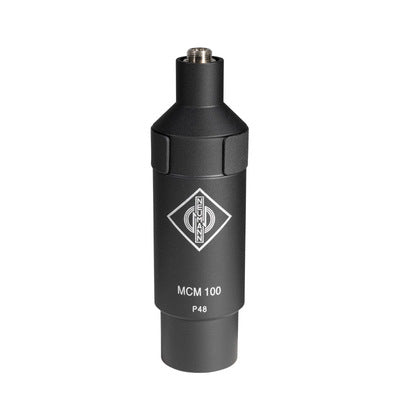

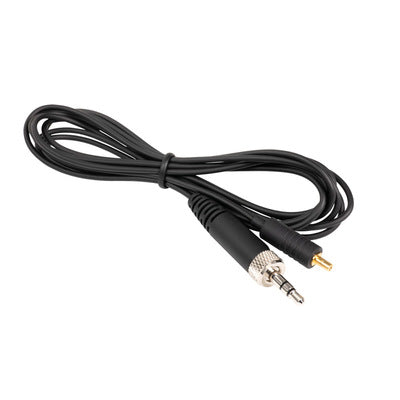

The MCM System includes interchangeable cable options with 3.5 mm jack, Lemo, 4-pin mini-XLR, and MicroDot connectors – no adapter needed. The microphone can also work with a wired connection using the MCM 100 high-end output stage and the 3.5 mm jack cable.

MOUNTING OPTIONS

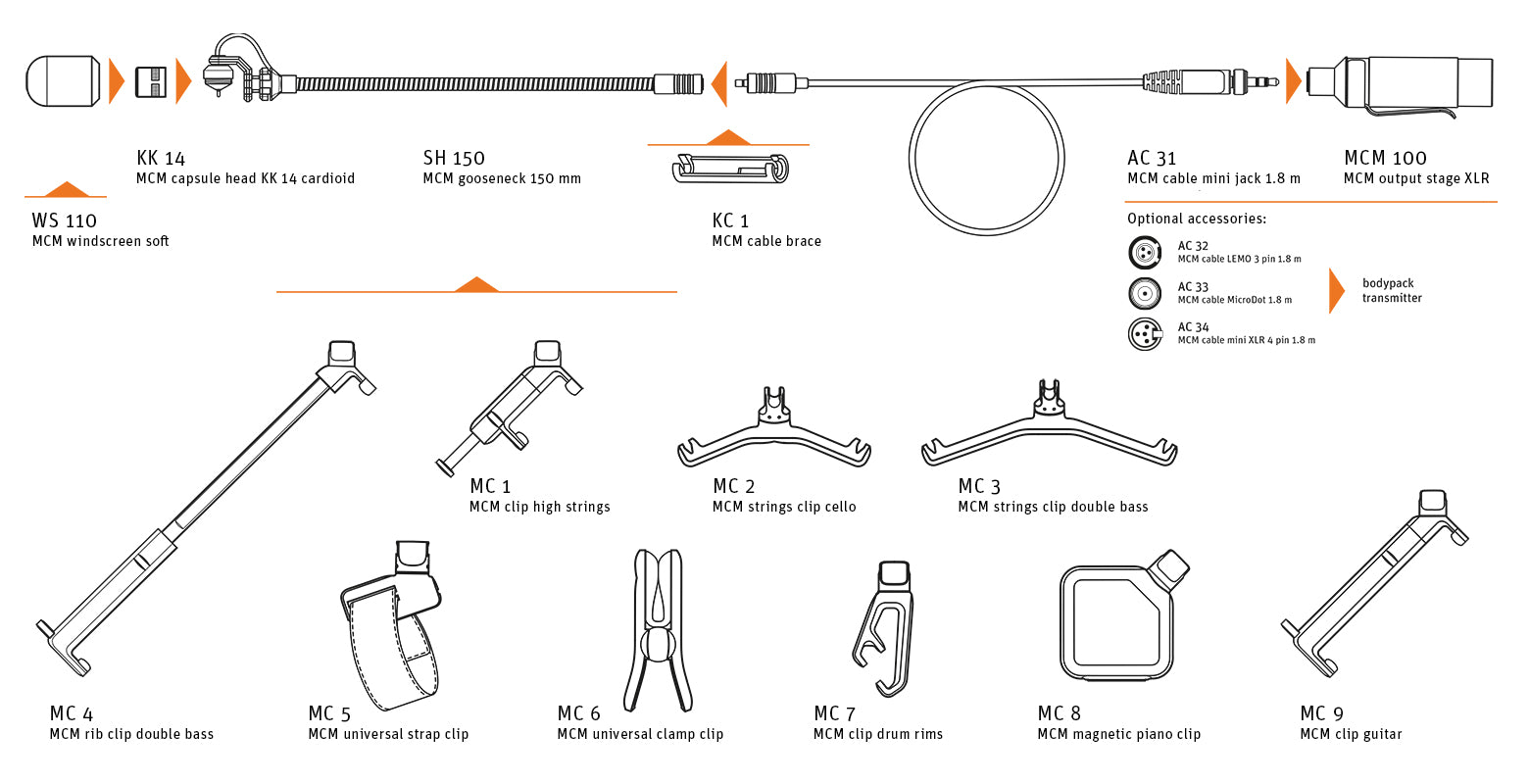

A fundamental part of the MCM System is an exhaustive palette of mounting options that allow for simple and reliable microphone positioning on any instrument. Their mechanics are gentle to even the most sensitive surfaces and make mounting a matter of seconds, requiring only one hand for most instruments. The gooseneck holder rotates along one or two axes and locks in 45° increments to allow for precise adjustment.

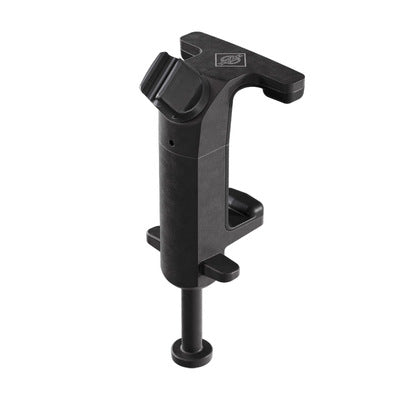

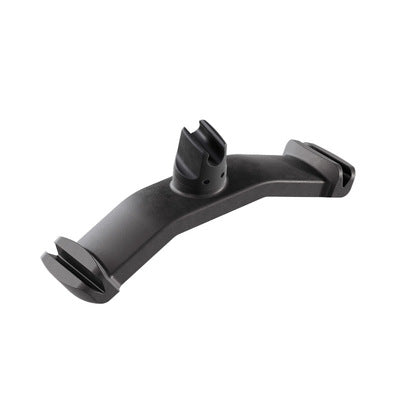

MC 1 Clip High Strings

Clip for attaching the capsule and gooseneck of the Miniature Clip Mic system to the body of a violin, viola, mandolin or similar instrument.

Product page

MC 2 Strings Clip Cello

Clip for attaching the capsule and gooseneck of the Miniature Clip Mic system to the strings of a cello below the bridge.

Product page

MC 3 Strings Clip Double Bass

Clip for attaching the capsule and gooseneck of the Miniature Clip Mic system to the strings of a double bass below the bridge.

Product page

MC 4 Rib Clip Double Bass

Clip for attaching the capsule and gooseneck of the Miniature Clip Mic system to the body of a double bass or similar instrument.

Product page

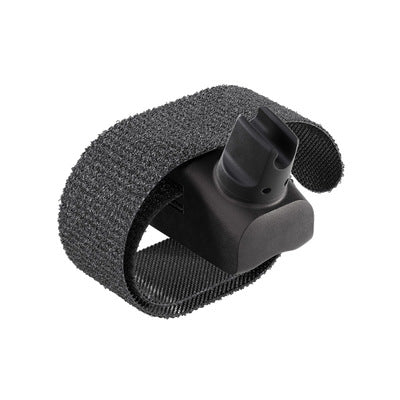

MC 5 Universal Strap Clip

Universal holder for attaching the capsule and gooseneck of the Miniature Clip Mic system to an oboe, clarinet, flute, recorder, harp or bassoon.

Product page

MC 6 Universal Clamp Clip

Universal clip for attaching the capsule and gooseneck of the Miniature Clip Mic system to the bell of a trumpet, trombone, saxophone or other horn, to percussion instruments and to pole stands.

Product page

MC 7 Clip Drum Rims

Universal clip for attaching the capsule and gooseneck of the Miniature Clip Mic system to percussion instruments and drums such as snares, toms, and stand toms or similar instruments.

Product page

MC 8 Magnetic Piano Clip

Magnetic holder for attaching the capsule and gooseneck of the Miniature Clip Mic system to/in a piano or grand piano. {% link_external href=/mc-8 | title= Product page| text= Product page%}

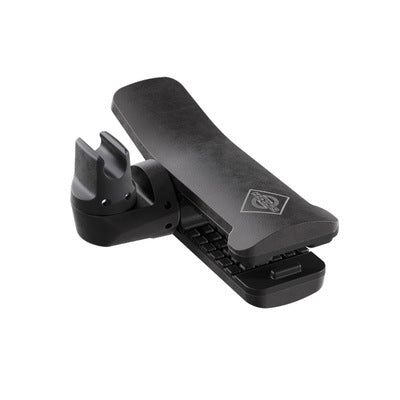

MC 9 Clip Guitar

Clip for attaching the capsule and gooseneck of the Miniature Clip Mic system to the body of a guitar, ukulele, Dobro, acoustic bass or cello.

Product page

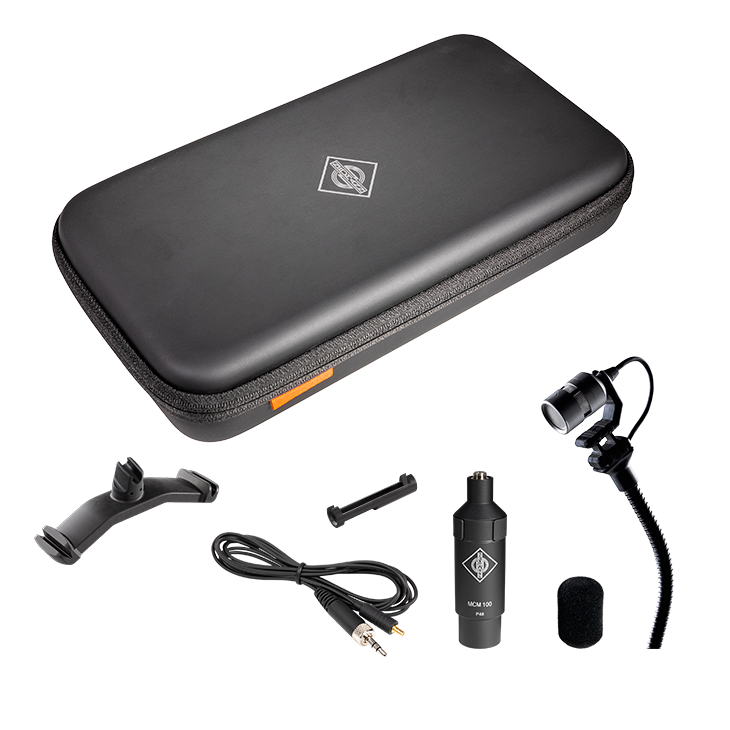

INSTRUMENT SETS

All components of the system are available separately. For many common applications, there are also complete sets in a soft case with all the necessary components.

MCM 114 Set Vio/Via (MC 1)

Complete set for using the Miniature Clip Mic system on the body of a violin, viola, mandolin or similar instrument. Contains: KK 14 capsule, SH 150 gooseneck, KC 1 cable brace, AC 31 cable, MCM 100 output stage, WS 110 wind shield, MC 1 clip. Delivered in a handy soft case.

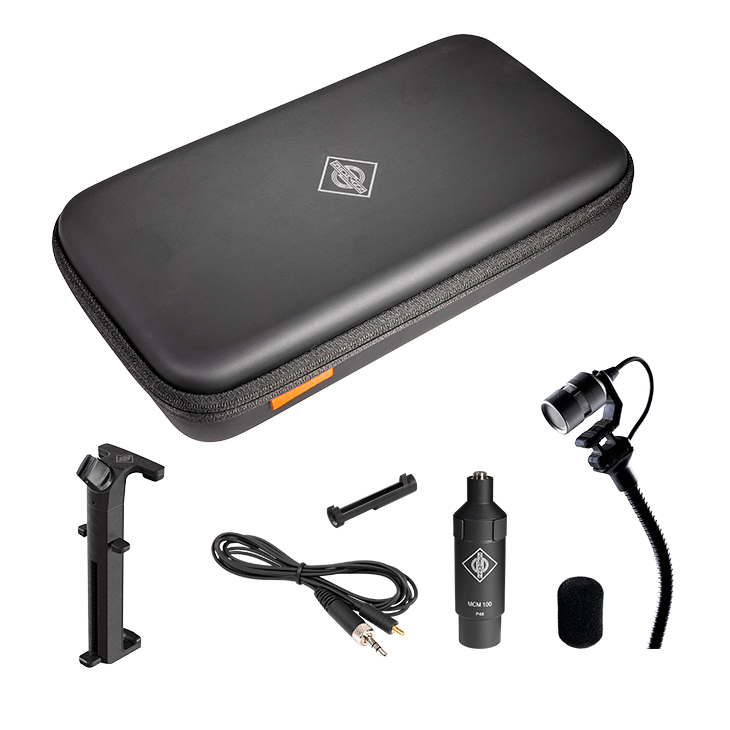

MCM 114 Set Guitar (MC 9)

Complete set for using the Miniature Clip Mic system on the body of a guitar, ukulele, Dobro, acoustic bass or cello. Contains: KK 14 capsule, SH 150 gooseneck, KC 1 cable brace, AC 31 cable, MCM 100 output stage, WS 110 wind shield, MC 9 clip. Delivered in a handy soft case.

MCM 114 Set Double Bass (MC 3)

Complete set for using the Miniature Clip Mic system on the strings of a double bass behind the bridge. Contains: KK 14 capsule, SH 150 gooseneck, KC 1 cable brace, AC 31 cable, MCM 100 output stage, WS 110 wind shield, MC 3 clip. Delivered in a handy soft case.

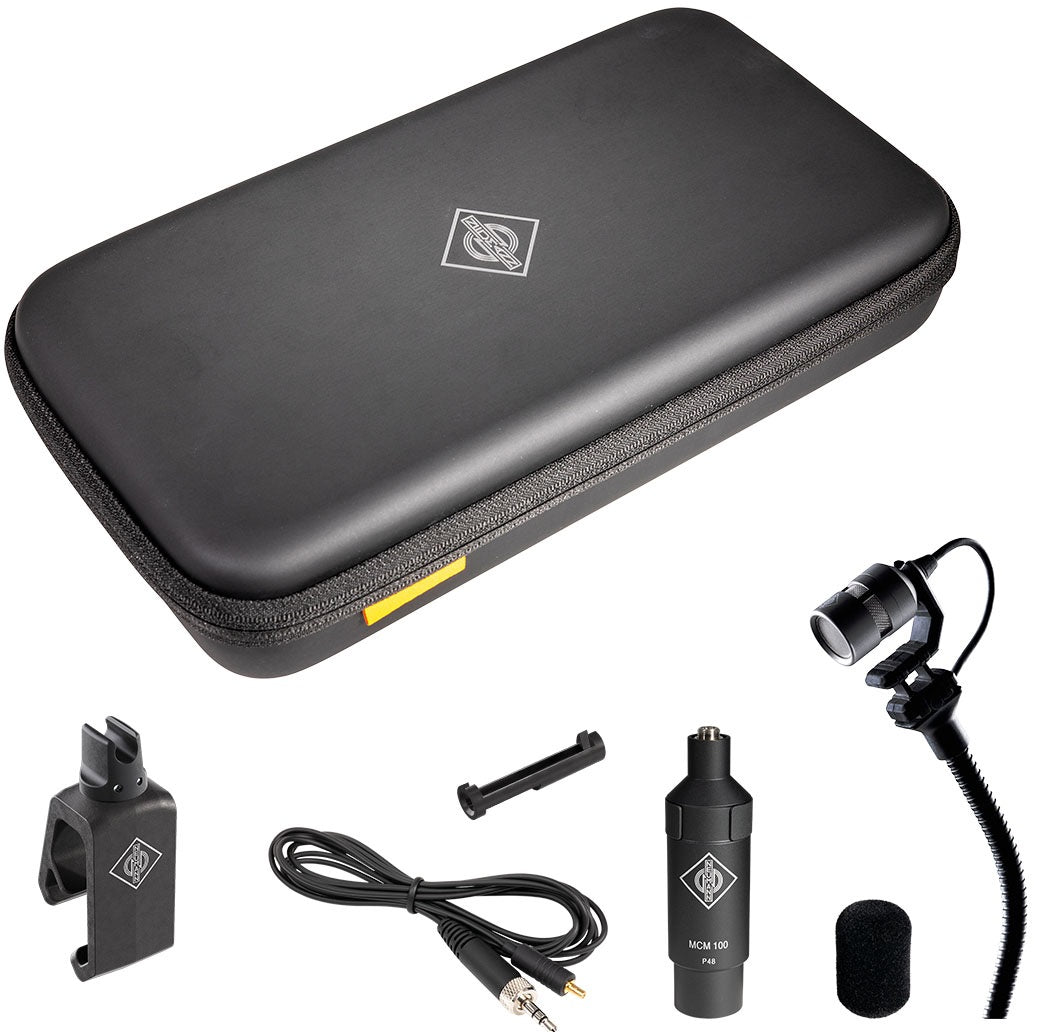

MCM 114 Set Drums/Perc (MC 7)

Complete set for using the Miniature Clip Mic system on percussion instruments and drums such as snares, toms, stand toms and timpanis. Contains: KK 14 capsule, SH 150 gooseneck, KC 1 cable brace, AC 31 cable, MCM 100 output stage, WS 110 wind shield, MC 7 clip. Delivered in a handy soft case.

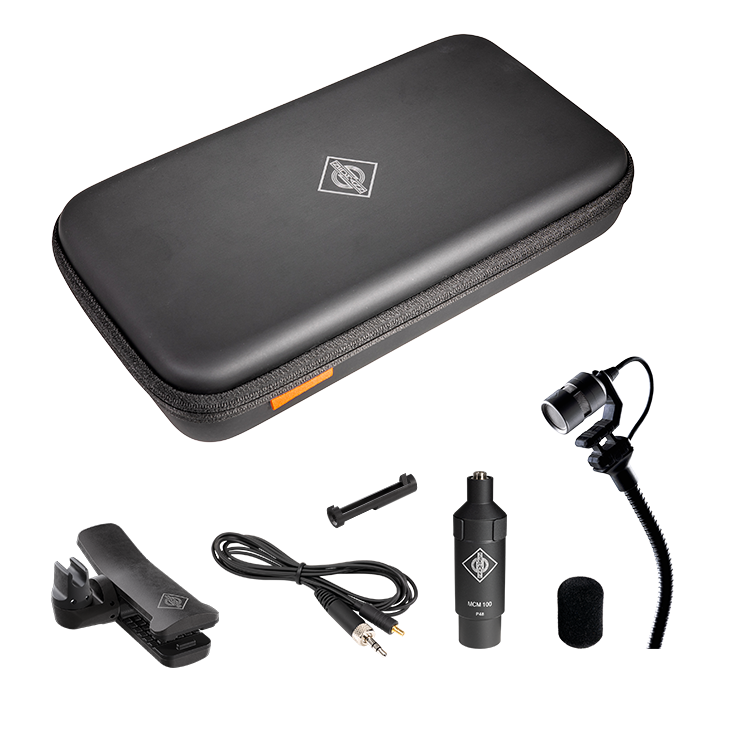

MCM 114 Set Brass/Sax/Uni (MC 6)

Complete set for using the Miniature Clip Mic system on the bell of a trumpet, trombone, saxophone or other horn, on percussion instruments and on pole stands. Contains: KK 14 capsule, SH 150 gooseneck, KC 1 cable brace, AC 31 cable, MCM 100 output stage, WS 110 wind shield, MC 6 clip. Delivered in a handy soft case.

MCM 114 Stereo Set Piano (MC 8)

Complete stereo set for using the Miniature Clip Mic system in/on a piano or grand piano. Contains two each of: KK 14 capsule, SH 150 gooseneck, KC 1 cable brace, AC 31 cable, MCM 100 output stage, WS 110 wind shield, MC 8 clip. Delivered in two handy soft cases.

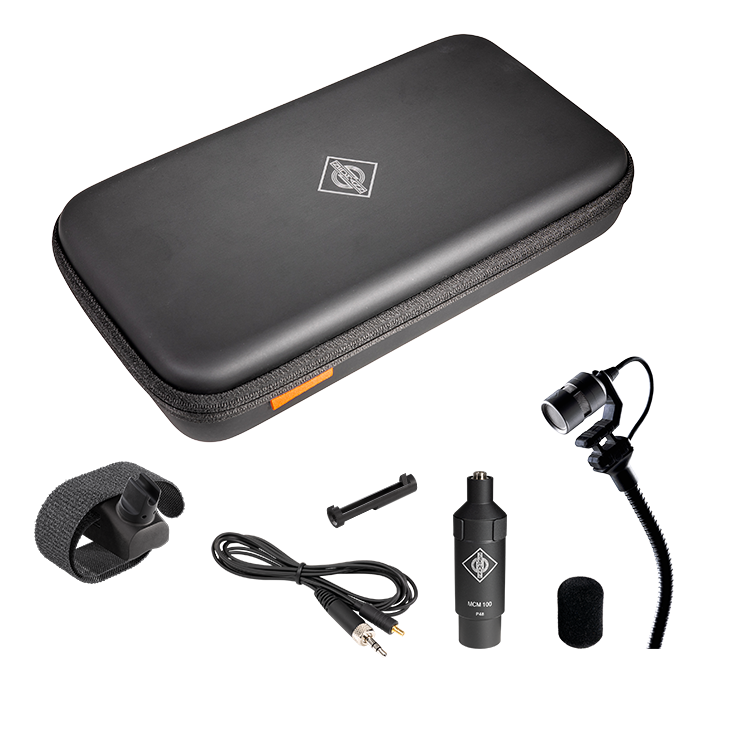

MCM 114 Set Woodwinds (MC 5)

Complete set for using the Miniature Clip Mic system on an oboe, clarinet, flute, recorder, harp or bassoon. Contains: KK 14 capsule, SH 150 gooseneck, KC 1 cable brace, AC 31 cable, MCM 100 output stage, WS 110 wind shield, MC 5 clip. Delivered in a handy soft case.

MCM 114 Set Cello (MC 2)

Complete set for using the Miniature Clip Mic system on the strings of a cello behind the bridge. Contains: KK 14 capsule, SH 150 gooseneck, KC 1 cable clip AC 31 cable, MCM 100 output stage, WS 110 wind shield, MC 2 clip. Delivered in a handy soft case.
